Small Baths (Garden of the Small Baths to the south of the Great Baths; rear garden to the west of the House of Bacchus)

Province

Numidia
Numidia (Roman province)(Pleiades)

Province Description

The frontier between Numidia and Mauretania fluctuated during early the African kingdoms. It was fixed at the river of Ampsaga during Caesar’s reign when he rewarded his ally King Bocchus, giving him part of the Numidian kingdom. By 31 BCE, Numidia (also known as Africa Nova) was under direct Roman control, becoming attached to the province of Africa Proconsularis. Toward 194 CE, Septimus Severus detached most of the Numidia territory from the province of Africa Proconsularis, forming a special province governed from Cirta by a procurator, subordinate to the imperial legate. With the Diocletian reforms, the whole of Roman Africa (with exception of Mauretania Tingitana) constituted a single diocese subdivided into six provinces, including Numidia Cirtensis with Cirta as capital.

Location

Cuicul
Cuicul (Pleiades)

Plan of Cuicul.

Fig. 1: Plan of Cuicul (AOROC, from Février, P.-A., Blanchard-Lemée, M., 2019, fig. 1a)

Location Description

The city of Cuicul, modern Djemila in Algeria, was a Roman colony founded by Trajan at the beginning of the second century. It was located near the western frontier of Numidia, at a crossroads near the High Plain of Setif and quite south of the actual “Little Kabylie” region. The original city center was constructed on a spur set between two merging wadi, the Gergour and the Betame, at an altitude of about eight hundred meters above sea level, surrounded by mountains more than a thousand meters above sea level. There are snow falls and freezing cold in winter and plenty of water. For the most part, the climate exc1udes plants which cannot stand the frost; however, we can infer the presence of olive plantations due to the number of olive presses found throughout the town.

Garden

Small Baths (Garden of the Small Baths to the south of the Great Baths; rear garden to the west of the House of Bacchus)

Keywords

Garden Description

The garden A mentioned as an open area was excavated in 1930-1931 and in 1944 (Plan view, Fig. 1). It was enclosed on the N, by the Small Baths I (covered in a later period by the seven apse hall built in the fifth century); on the W, by the limit of a long boundary wall (44m long) of the property; on the S, by another wall and by the little building II with the well known dionysiac pavement. Along the rear wall of the garden on the W, there was a terrace III (9 m long) paved with black mosaic. It runs from the large reservoir at the SW corner to a pavilion IV near the NW corner. The pavilion (6.40 m x 3.60 m) commanded a large view over the garden; it may be interpreted as a summer dining room, a diaeta. It was decorated with stuccoed moldings and a colorful mosaic pavement, which could hardly be dated before the fourth century, but perhaps was not the original pavement. Parallel to the edge of the terrace, one meter below the reservoir, sixty centimeters below the terrace, there was a rectangular pool V (16. 50 m X 4.50 m, 1.63 m deep). Water entered at the south edge, under the pedestal (a) still in place. Along the W and the S sides of the pool, more or less than two meters away, there is a row of stone bases, each showing a hole for a wood post, that likely supported a pergola; a vine probably shaded the passage (similar holes are visible in the N and W edges of the pool) (fig. 2, fig. 3). Standing on the pedestal (a), we may imagine a garden statue, for the feet of a marble statuette of an Unraveling Venus (1 m high) were found precisely at the same time (fig. 4) ; the body had been carried, by the load of earth along the sharp slope, towards the large peristyle. Near the pool were also found a broken head of Aseculapius (30 cm high) and a set of surgical instruments. On the E side of the garden, there was a tank that stored water from the spring, the channel of which crosses the garden towards the large peristyle VI. The little building II with dionysiac pavement, perhaps widely opened towards the garden, and must be interpreted in connection to it: the vine in the mosaic may recall the vine in the pergola. This ornamental garden combines many uses (bathing, dining, curing, entertaining) and many religious significations, referring to Dionysus, Venus, Aesculapius.

Plans

Plan of the Small Baths

Fig. 1: Plan of the Small Baths (Blanchard-Lemée, M., 1998, fig. 6)

Images

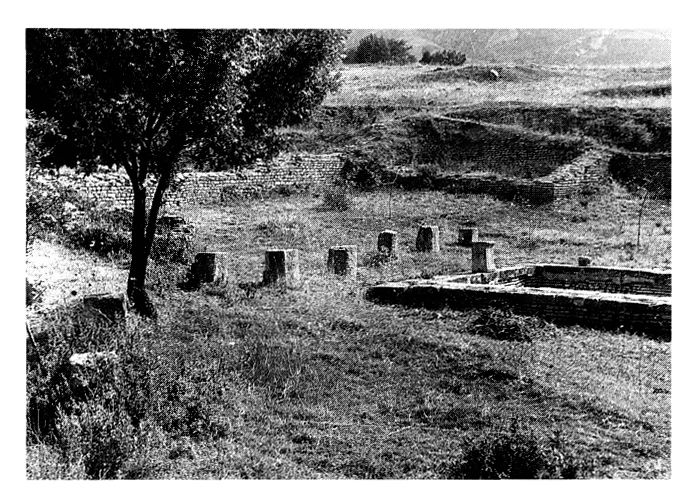

Southern side of the rectangular pool

Fig. 2: Southern side of the rectangular pool (Février, P.-A. – CCJ 62881)

Drawing of reconstruction of the rectangular pool

Fig. 3: Drawing of reconstruction of the rectangular pool (Kahwagi-Janho, H.)

Venus

Fig. 4: Venus (Blanchard-Lemée, M., AOrOc)

Dates

Early 3rd century CE

Excavation Dates

1938

Bibliography

  • Blanchard-Lemée, M., “Dans les jardins de Djemila”, in Antiquités Africaines, 34, 1998, pp. 185-197, Il fig. (worldcat)
  • Blanchard-Lemée, M., “La Maison de Bacchus à Djemila: Architecture et décor d’une grande demeure provinciale à la fin de l’antiquité”, in Bulletin archéologique du C. THS., NS, fasc. 17 B (Colloque sur l’archéologie et l’histoire de l’Afrique du Nord, Perpignan, 1981), 1984, pp. 131-143. (worldcat)
  • Février, P.-A., Blanchard-Lemée, M., L’édifice appelé “Maison de Bacchus” à Djemila, Études d’antiquités africaines, CNRS Editions, Paris, 2019, SSN 0768-2352. (worldcat)
  • Malek, A.-A., “Le jardin au fil de l’eau : mises en scène paysagères dans les domus de Maghreb antique”, in L’eau dans les villes du Maghreb et leur territoire à l’époque romaine, eds, Brouquier-Reddé, V. et Hurlet, Bordeaux, F., Ausonius, 2018, pp. 248-249. (worldcat)

Pleiades ID

305068

TGN ID

Contributor

Michèle Blanchard-Lemée

Publication date

21 Apr 2021
